How Pedestal Rock Breaker Boom Systems Optimize Material Flow and Prevent Downtime

In crushing and screening operations, grizzly stations and feed hoppers are critical points in the material handling chain. Blockages, bridging, and uneven feed can quickly disrupt the entire production line, reduce throughput, and increase operational costs.

Pedestal rock breaker boom systems provide a practical, efficient solution to these challenges, ensuring consistent material flow, protecting equipment, and improving overall plant productivity.

The Challenge: Material Bridging and Blockages

Grizzly stations and feed hoppers handle large, irregular rocks. Common operational issues include:

1. Bridging: Material forms a stable arch inside the hopper, preventing flow

2. Ratholing: Material flows unevenly through a narrow channel, leaving stagnant zones

3. Oversize rocks: Large boulders or slabs may jam the hopper or feeder

4. Uneven feed: Causes inconsistent crusher performance and additional stress on downstream equipment

Manual intervention in these areas is not only time-consuming but also highly dangerous due to the risk of sudden rock movement.

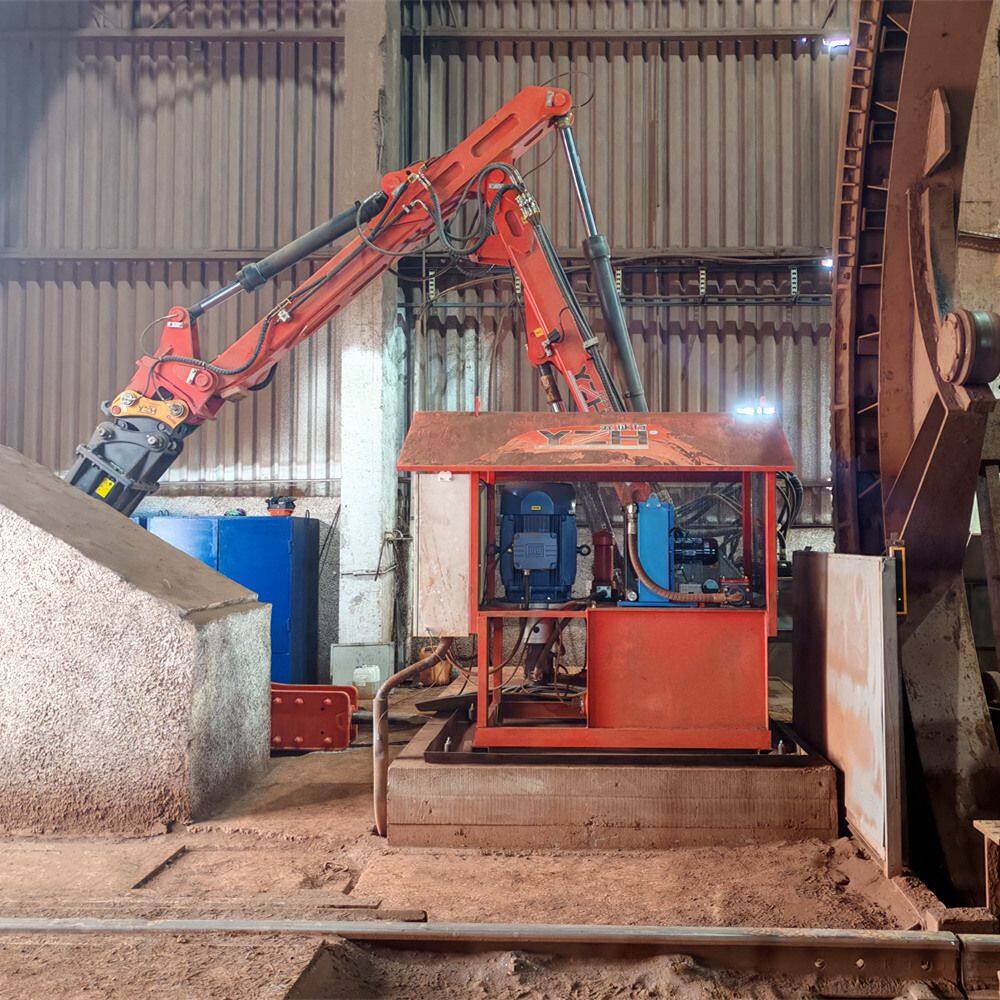

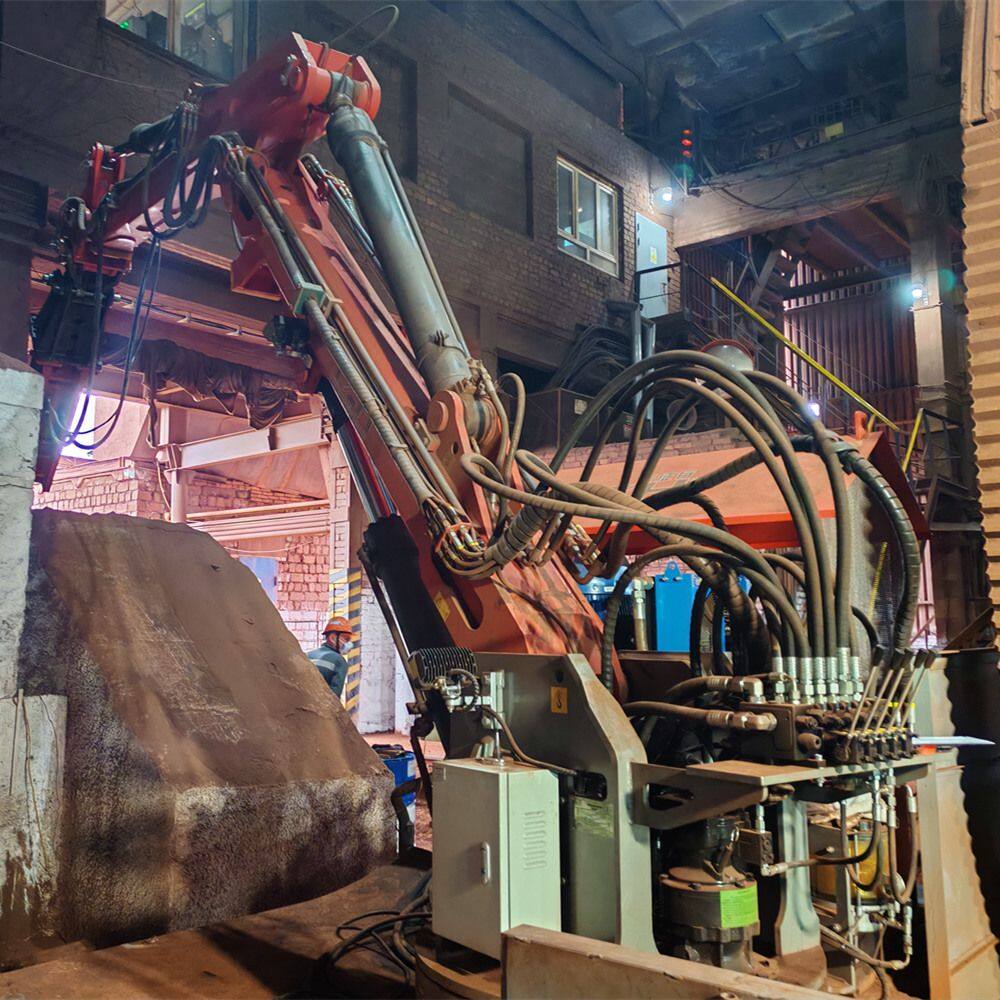

Pedestal Rock Breaker Boom: A Solution for Continuous Material Flow

Pedestal boom systems address these challenges in several ways:

1. Precise Positioning

①Boom reach and multi-axis articulation allow the operator to target problem areas directly

②Even difficult-to-access zones at the bottom or sides of the hopper can be cleared efficiently

2. Controlled Rock Breaking

①Hydraulic hammers break oversized rocks gradually

②Minimizes impact on hopper walls, grizzly bars, and supporting structures

3. Remote Operation

①Wireless controls allow operators to stay at a safe distance

②Immediate response to blockages without stopping upstream feed or the crusher

Benefits for Grizzly Stations

1. Reduced downtime: Continuous flow prevents crusher idling

2. Improved throughput: Even material distribution ensures optimal crusher performance

3. Equipment protection: Controlled breaking reduces stress on grizzly bars and supporting structures

4. Safety: Operators avoid entering hazardous zones

Benefits for Feed Hoppers

1. Efficient bridging removal: Prevents material arching and ratholing

2. Stable feed rates: Maintains consistent material flow to crushers

3. Lower maintenance costs: Reduced wear on feeders and chutes due to controlled material movement

4. Enhanced operational visibility: Wireless remote operation allows precise hammer positioning

Real-World Impact

Operators using pedestal rock breaker boom systems in hoppers and grizzly stations often report:

1. 30–50% reduction in hopper-related downtime

2. Smoother material flow and fewer production interruptions

3. Fewer manual interventions, improving both safety and productivity

4. Extended life of feeder, hopper, and crusher components

Maximizing Efficiency: Best Practices

1. Correct Boom Placement

Position the pedestal to cover all critical points in the hopper or grizzly station

2. Scheduled Blockage Checks

Regular inspection prevents small blockages from becoming major interruptions

3. Operator Training

Ensure operators understand hammer control, impact force, and safe operating distances

4. Routine Maintenance

Keep hydraulic systems, hammers, and boom joints in optimal condition for reliable operation

Conclusion

Grizzly stations and feed hoppers are critical bottlenecks in any crushing operation. Pedestal rock breaker boom systems turn these potential problem areas into controlled, safe, and efficient points of operation.

By providing precision, remote control, and controlled impact, these systems help operators maintain continuous material flow, protect equipment, and maximize throughput—making them an indispensable tool in modern crushing plants.
